U10 Deluxe

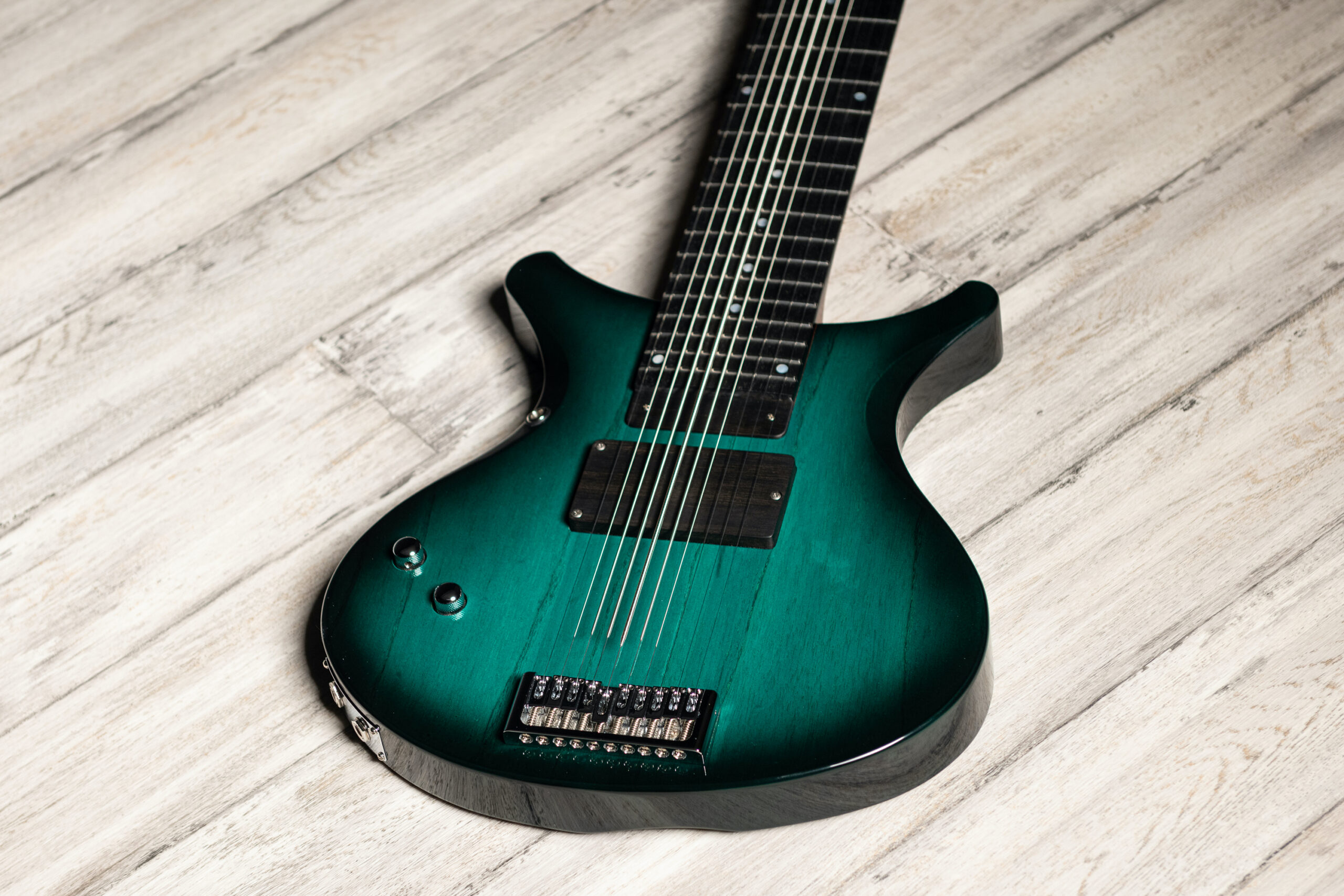

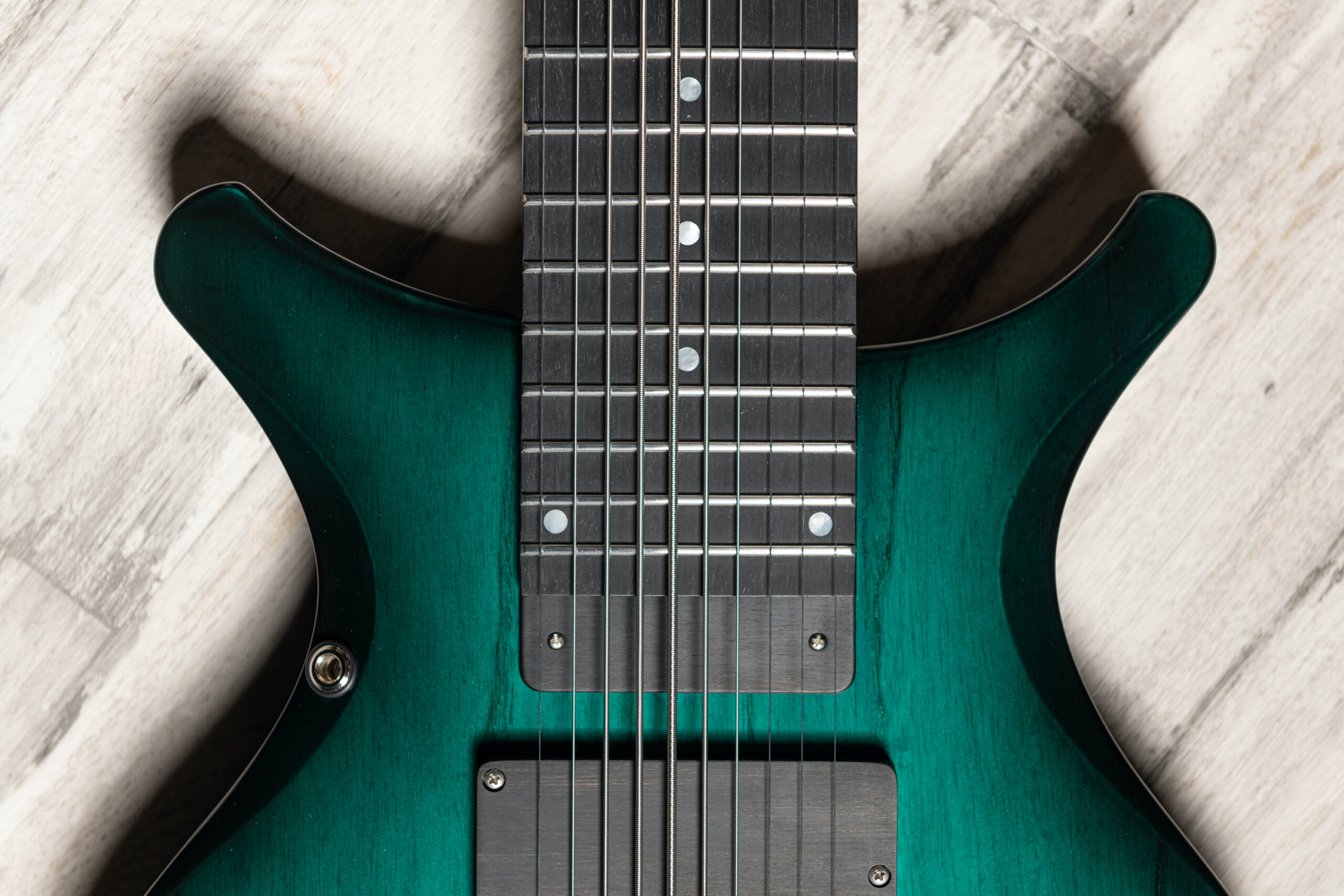

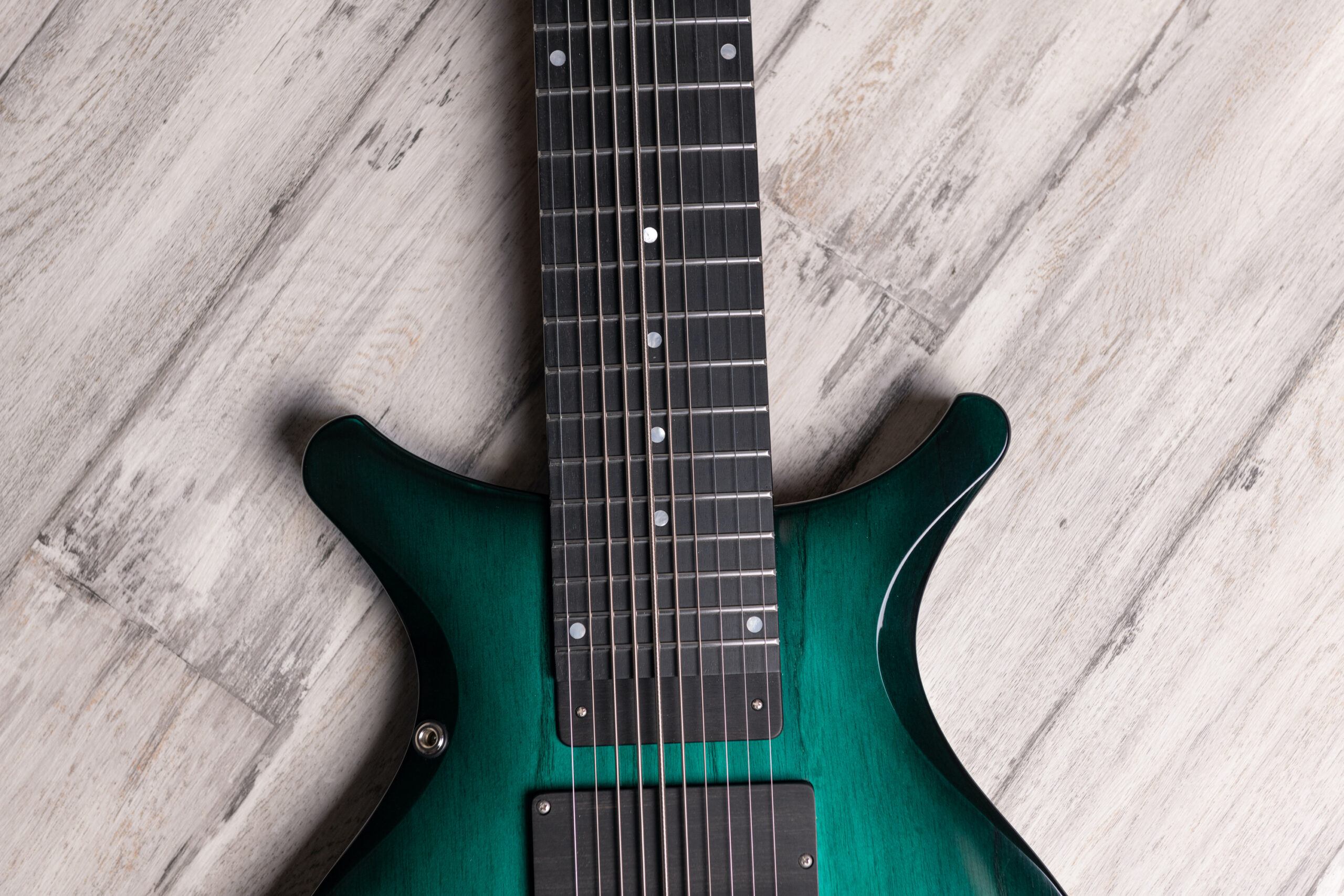

The U10 Deluxe features a similar body to the U8 Deluxe with its elaborate ergonomic shaping , a wider neck to accommodate the greater string range, a single pickup arrangement, and passive electronics. While it remains true to the original Touch Guitar concept of a single self-contained full-range instrument, its design also allows for separate output of the two “bass” and “guitar” ranges if desired. This is achieved via a split stereophonic pickup and a two-plug output socket through which each range is processed separately, plus individual volume controls for each of the two ranges.

As with all Touch Guitars®, construction and finishing options (from wood types used through to custom paint and varnish) are discussed with and chosen by the customer, as part of the custom-creation process.

Specifications

• 34″ (86 cm) scale length (smaller and lighter than a regular bass guitar, similar feel and heft to a baritone guitar).
• Extremely well balanced (stays stable in all playing positions).
• Body: Solid body, made from FSC-certified wood. (Default wood options: mahogany, cherry, swamp ash, maple or ash – other options available on request.)

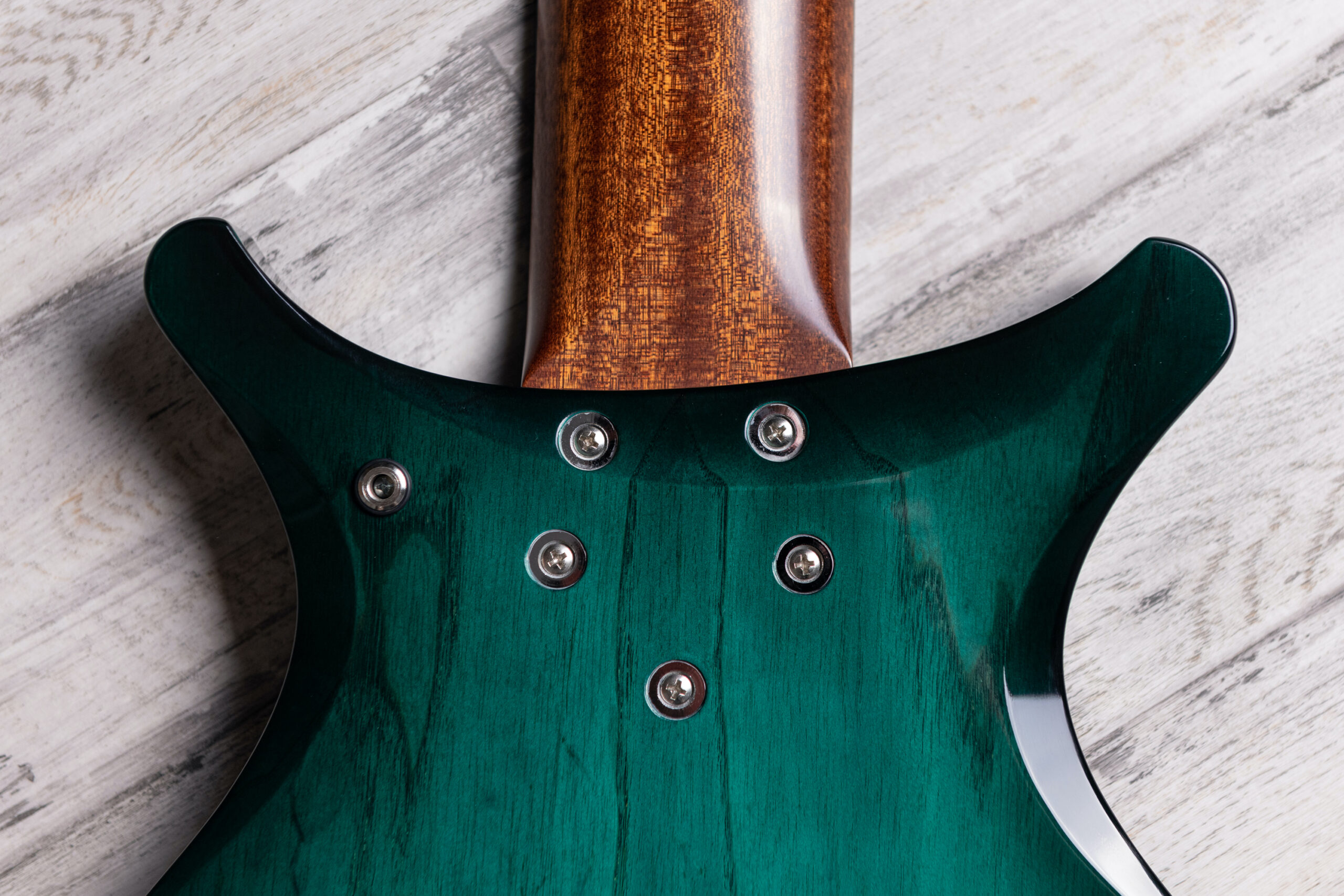

• Neck: FSC-certified wood with five-point bolt-on construction plus two graphite rod inserts to enhance stability. (Default wood options: 3-piece maple, mahogany or korina – other options available on request.)
• Fretboard and headstock overlay: FSC-certified wood. (Default wood options: ebony, walnut, maple or plumwood – other options available on request.)
• 10 strings with two default tunings to chose:
  (5th/5th) D G C F Bb | C G D A C
  (5th/4th) E A D G C | F# B E A D (although different tunings are possible)

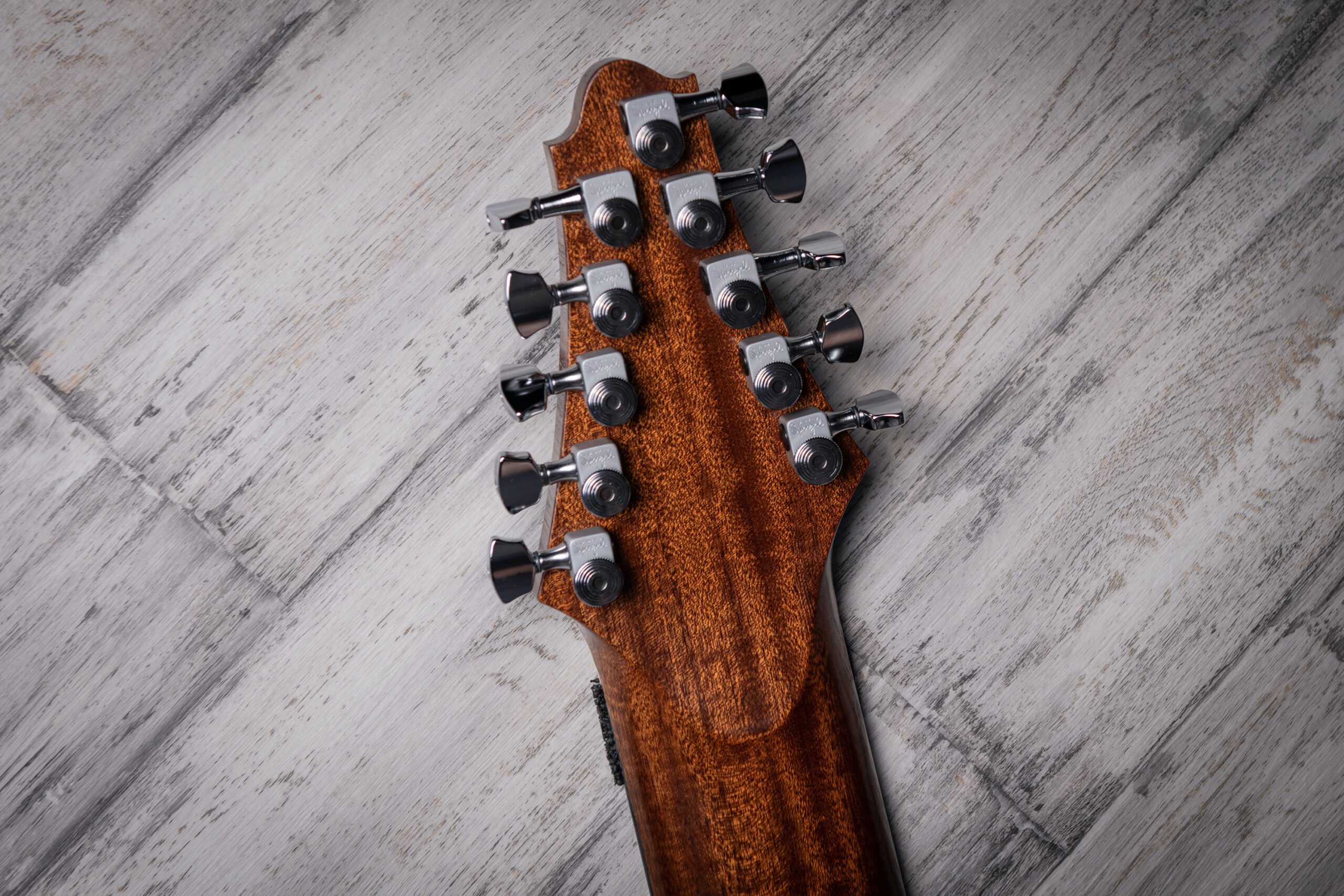

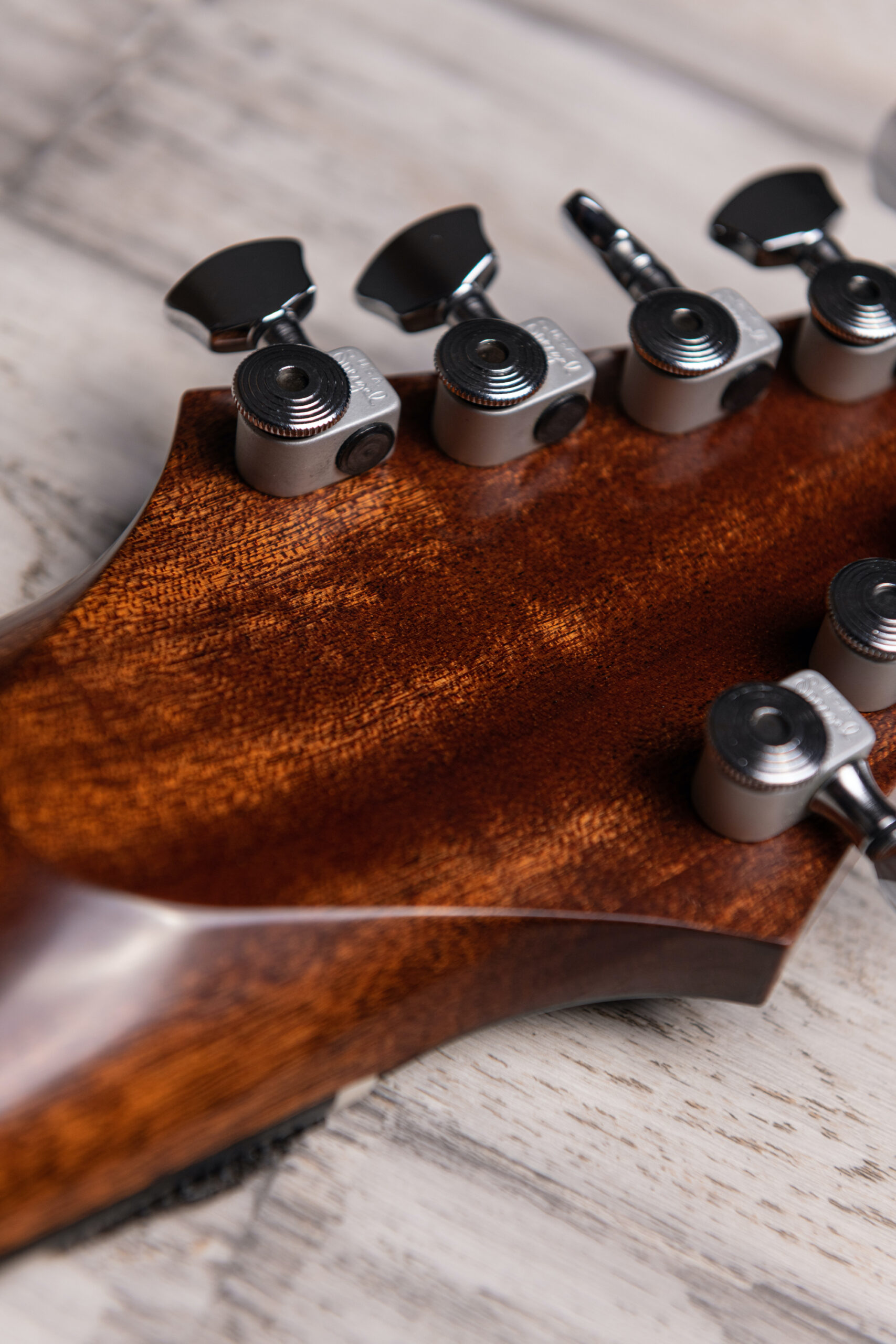

• Sperzel Locking Tuners.

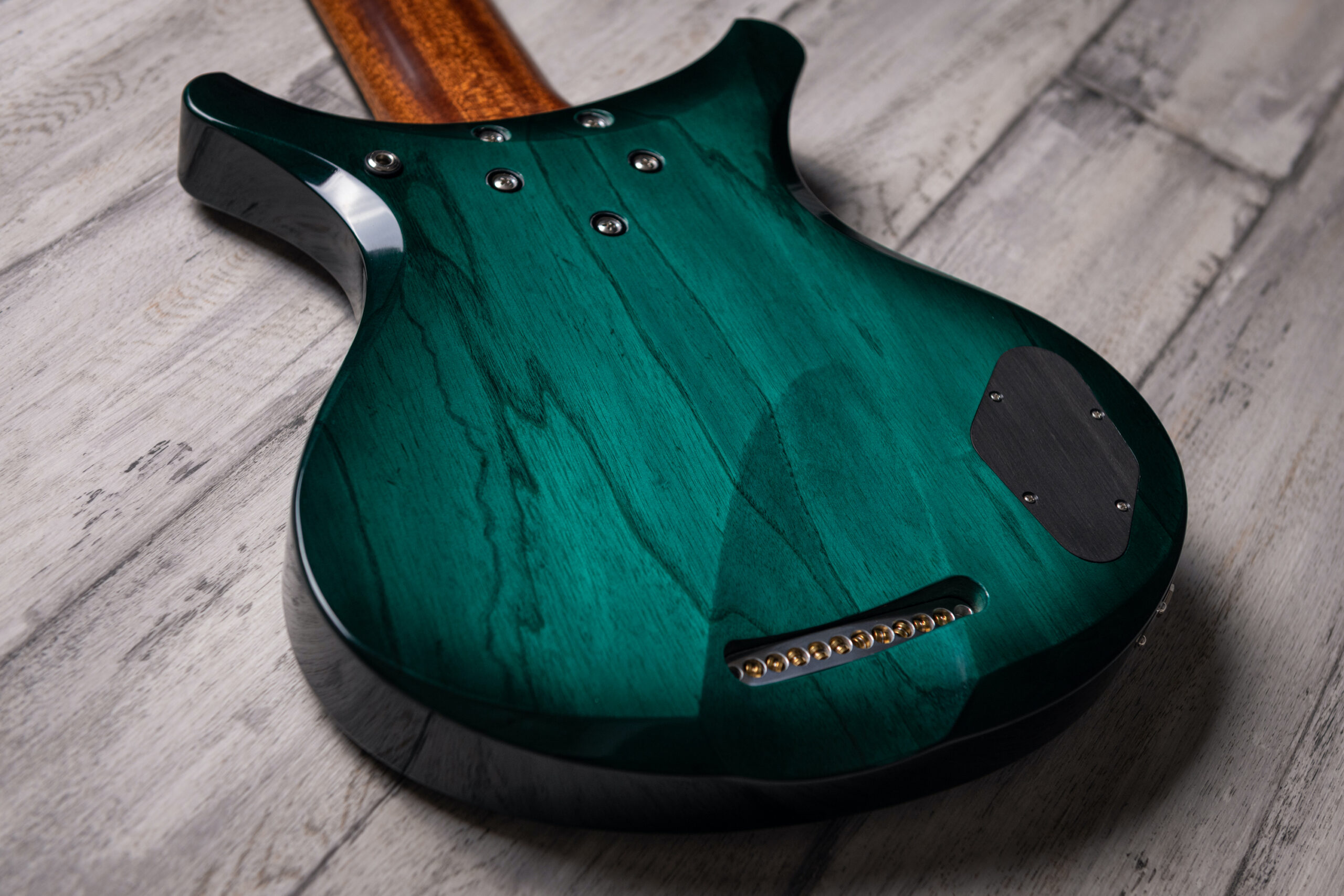

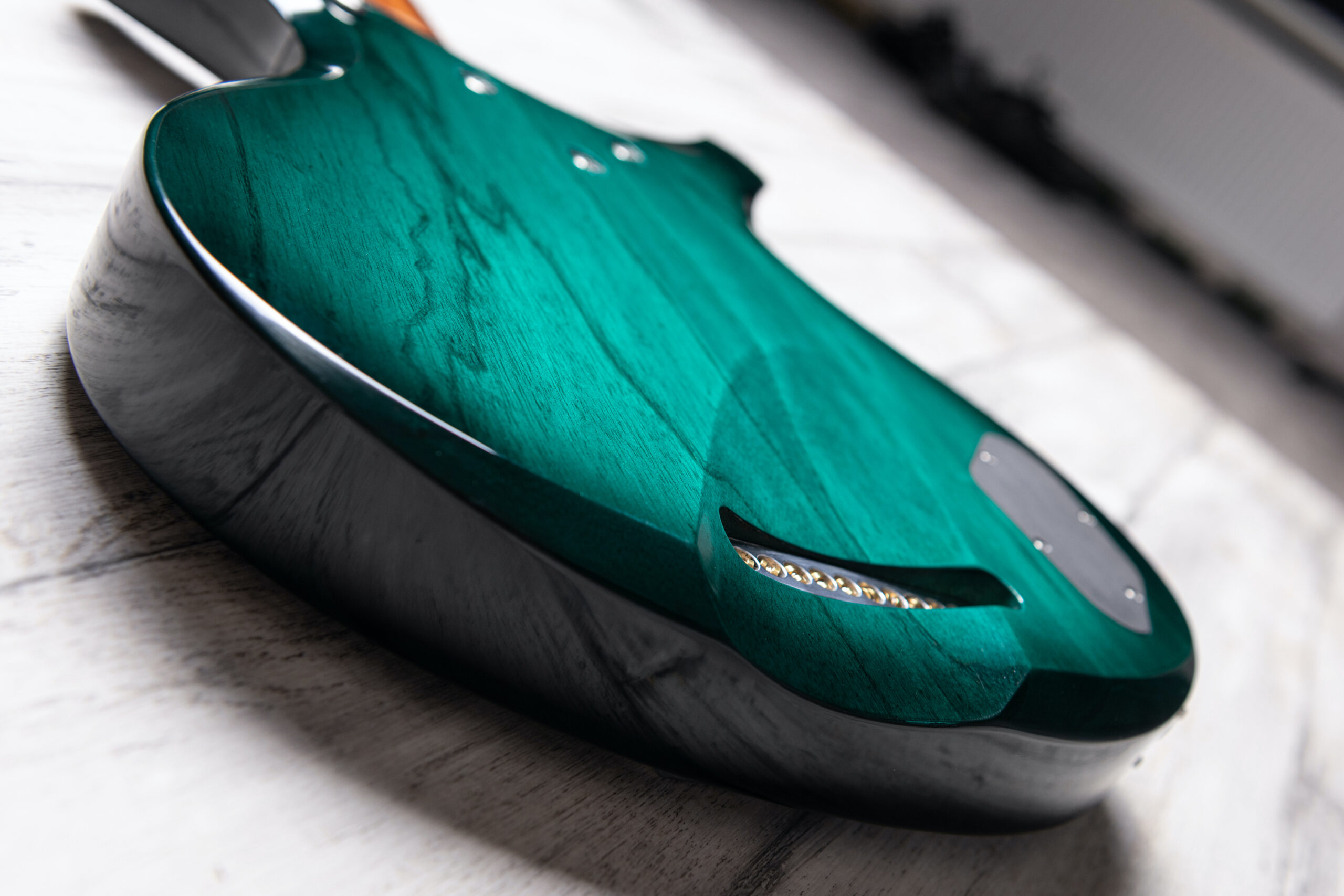

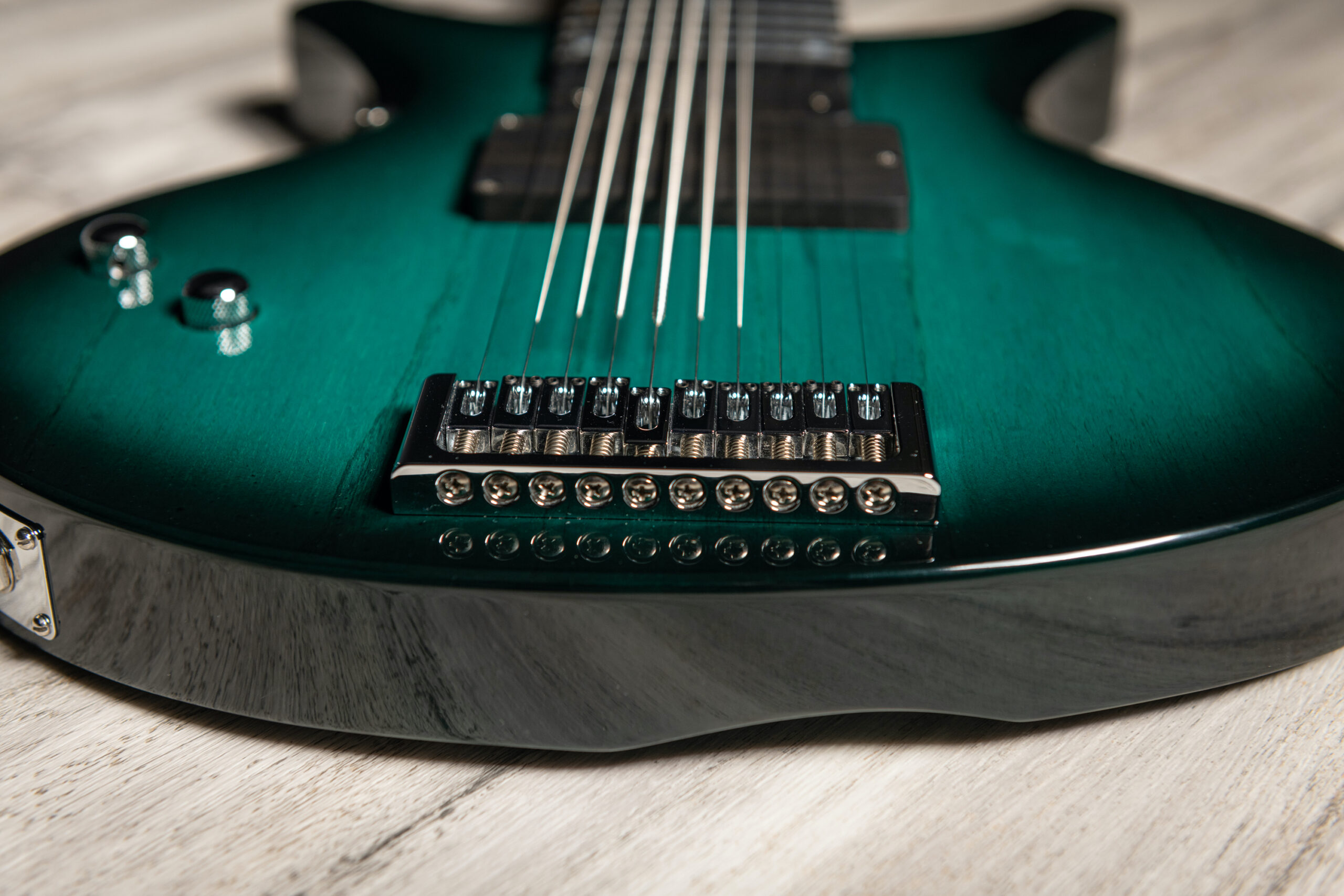

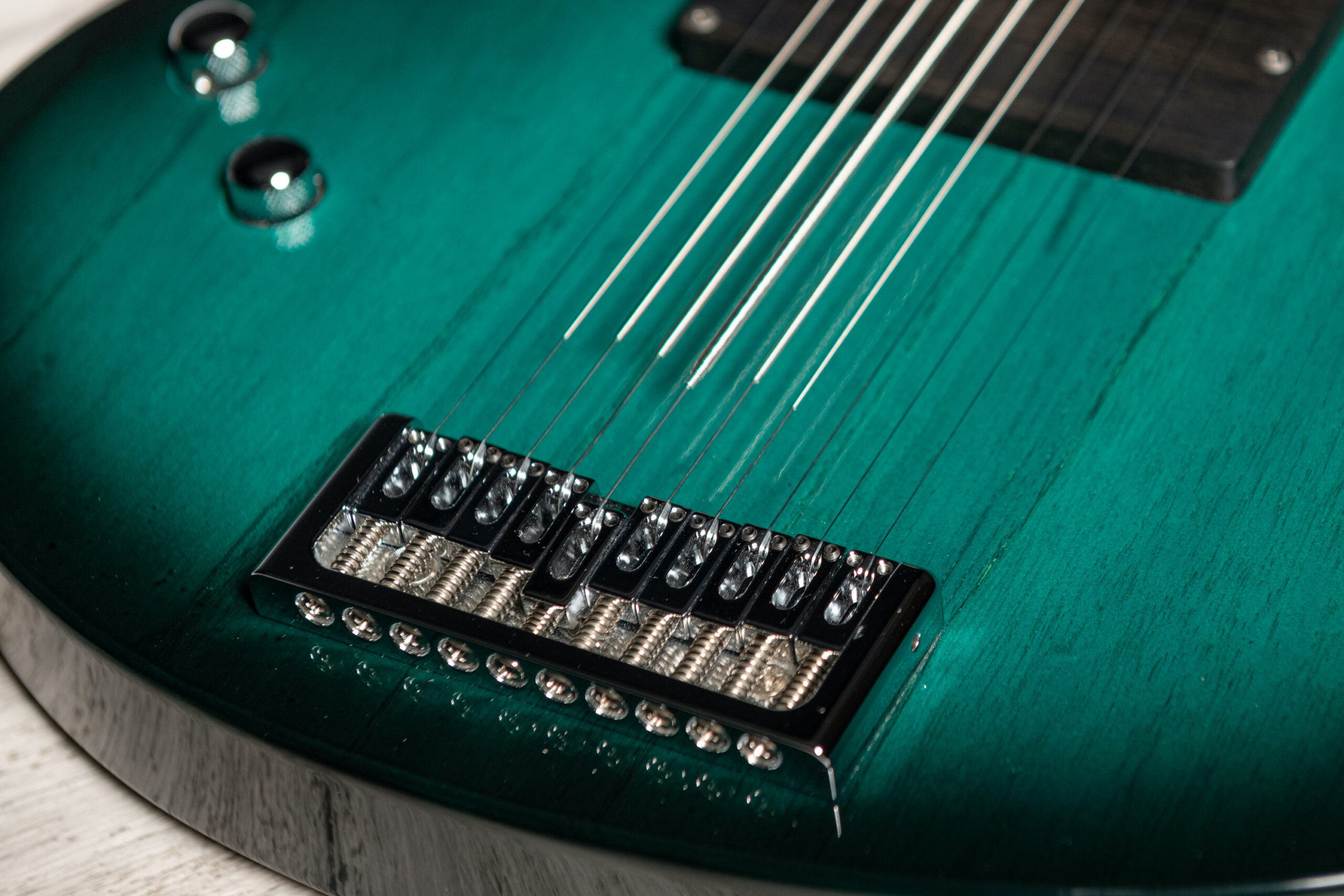

• ABM Custom Bridge with string-through-body system.

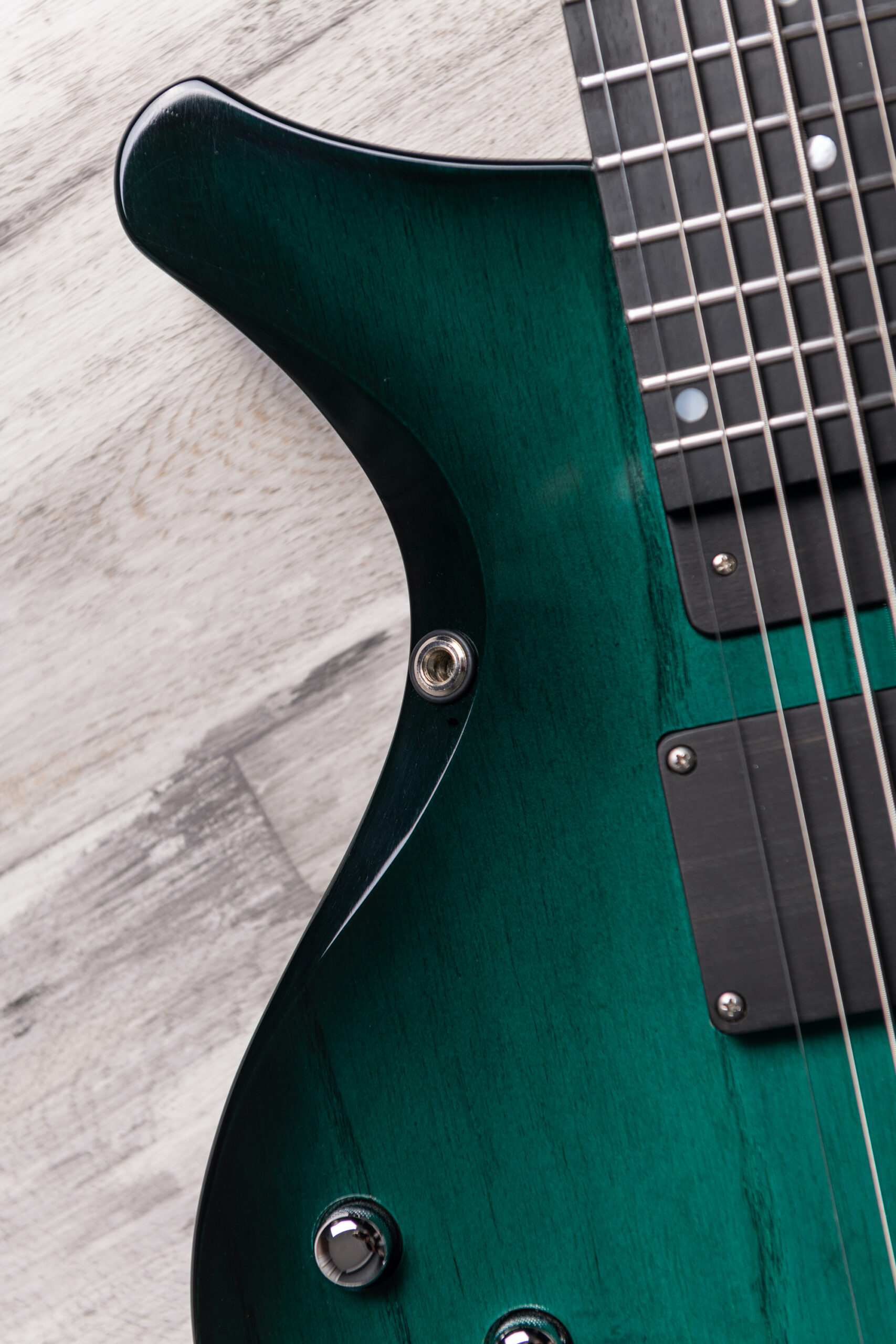

• Jim Dunlop Straplock System.

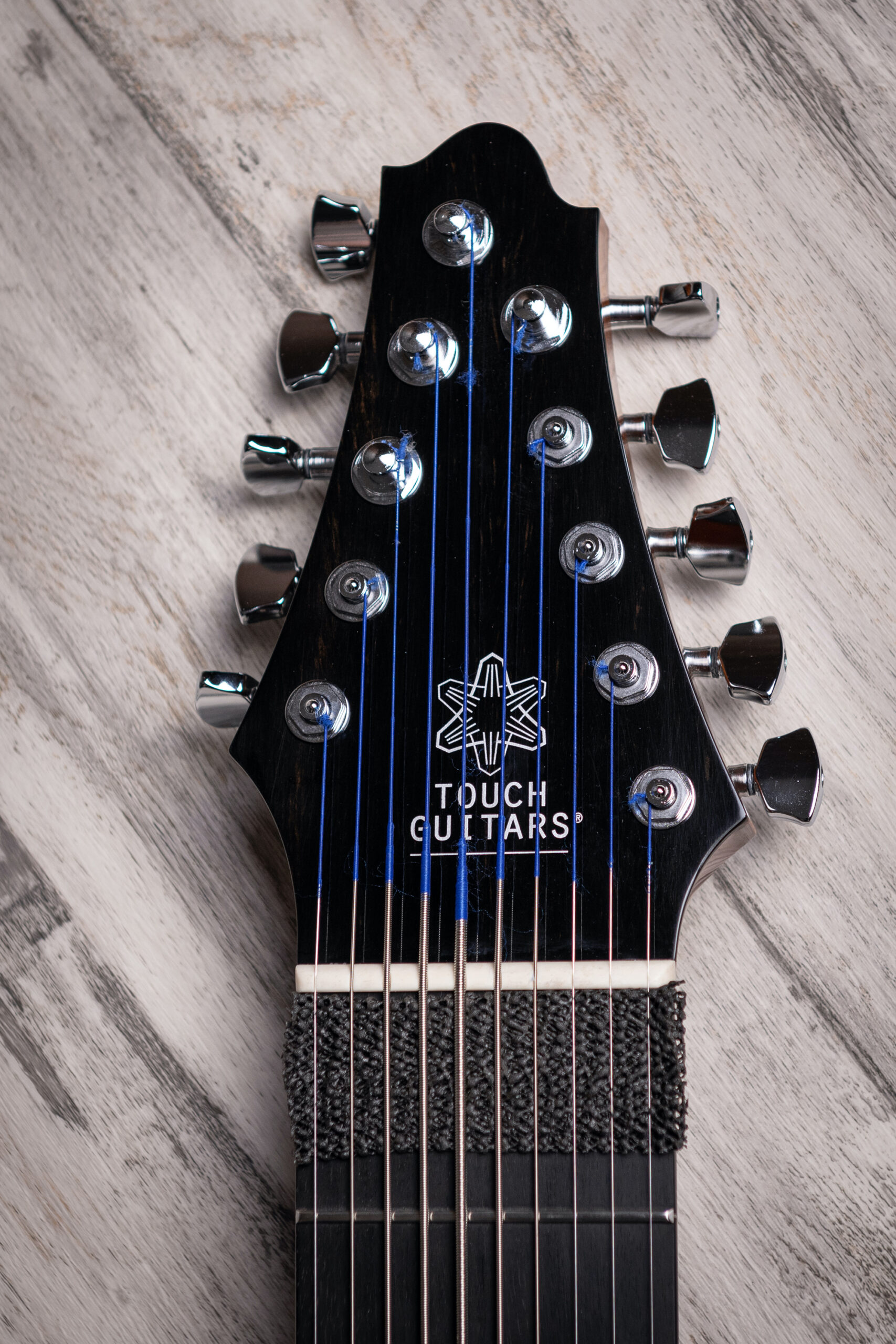

• Damping fabric on 1st fret
• extremely well balanced, stays in place in all positions
• Pickup Options: Bassculture modernSplit 5/5 Pickup, Häussel Bassbucker Split 5/5 Pickup, Cycfi Spectra Nu Stereo system
• Controls: volume (bass side), volume (guitar side).

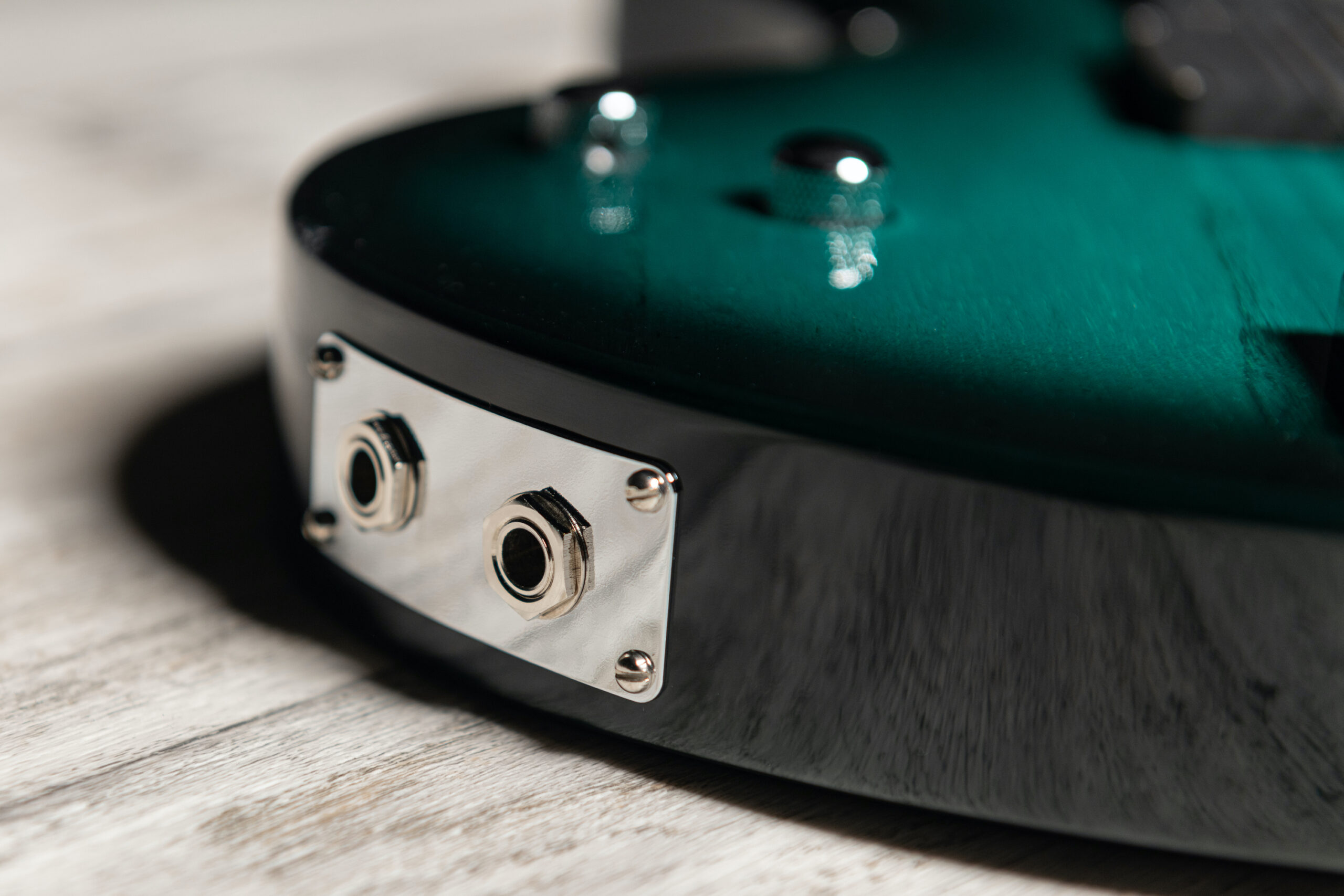

• Default two-plug stereophonic output (switches to mono automatically when only one plug is inserted)
• String spacing: 8,5 mm
• Finish: default natural clear or sunburst finish (with any other paint and varnish option available, via individual arrangement with customer).
• Handmade in Austria/Germany

5600EUR (excluding German VAT)
